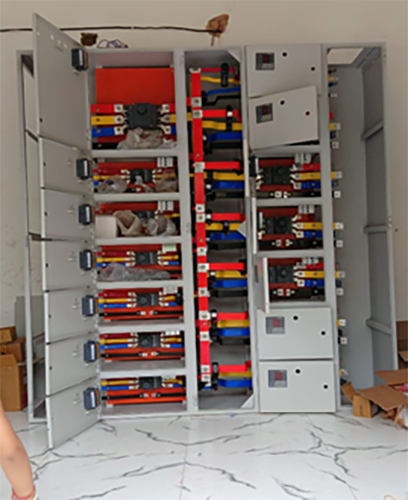

LT Panel

Get a Price/Quote

MOQ : 1 Unit

LT Panel Specification

Operating Voltage
415V AC

Connectivity Type
Hardwired / Ethernet (Optional)

Rated Operation Voltage
415V

Rated Current
Up to 2500A

Rated Insulation Voltage
690V

Control System
Manual / Automatic

Cooling System
Natural Air / Forced Air Cooling

Current Rating
Up to 2500A

Way
3/4/6/8 Way Options

Cover Material
MS Sheet with Powder Coating

Features
Sturdy design, rust proof, high durability, ease of installation

Protection Level
Overload, Short Circuit & Earth Fault

Cabinet Material
Powder Coated Mild Steel

Thickness
2 mm

Protection Class
Class I

Base Material
CRCA Sheet Steel

Components
MCB, MCCB, ACB, CT, PT, Busbar, Indicator Lamps

Panel Type
Floor Mounted / Wall Mounted

Product Type
Low Tension Electrical Panel

Material
Mild Steel (MS)

Surface Finish
Powder Coated

Standard
IEC 61439 / IS:8623

Surface Color
Siemens Grey (RAL7032)

Rated Voltage
415 V AC

Frequency (MHz)
50 Hz

Maximum Output Current
2500A

Dimension (L*W*H)
Customized as per requirement

Application
Industrial, Commercial and Utility Power Distribution

IP Rating
IP42 / IP54

Display Type
Analog / Digital Meters

Panel Mounting Type
Floor Standing / Wall Mounted

Service Life
More than 15 Years under normal conditions

Phase
Three Phase / Single Phase

Wiring Type
Tinned copper insulated wires

Compartmentalization
Yes, modular design for segregation of circuits

Conformance
Tested as per IS/IEC standards

Ambient Temperature
-5C to +45C

Incoming Type
Bottom / Top Cable Entry

Enclosure Type
Dust and Vermin Proof

Painting Thickness
70-80 Microns

Earth Bar
Provided throughout panel length

Operating Altitude
Up to 2000 meters above sea level

Busbar Material
Copper / Aluminium (as per specification)

Operating Humidity
Up to 95% RH (non-condensing)

LT Panel Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About LT Panel

Capitalise on the ultimate performance and renowned reliability of our customizable LT Panel, meticulously engineered with pristine copper or aluminium busbars as per your specification. The deal goes beyond basic utilities, integrating a modular, compartmentalized design for perfect segregation of circuits, and earth bar continuity throughout. With robust, powder-coated mild steel construction and advanced dust and vermin proofing, this panel guarantees a pristine interior for more than 15 years. Enjoy flexible mounting, Siemens grey finish, up to 2500A output, and ultimate safety with overload, short circuit, and earth fault protection-making it your ideal choice for industrial, commercial, and utility power distribution.

Built for Industrial Excellence and Adaptability

Our LT Panel is tailored for modern plant applications, delivering pristine performance in industrial, commercial, and utility settings. Suitable for both single-phase and three-phase operations, it accommodates all critical requirements-featuring multiple way options and ambient compatibility (-5C to +45C). Its competitive edge lies in its customizable dimensions, modular segregation of circuits, superior durability, and compliance with international standards, making it a preferred solution among leading manufacturers and service providers.

Sample Policy and Export Packaging Assurance

We supply LT Panel samples upon request to demonstrate quality and reliability for your project needs. Our products are delivered across main export markets with secure shipping and superior packaging to prevent damage. Each panel is packed in sturdy, moisture-resistant materials, guaranteeing it is delivered in pristine condition. Trust our team for prompt supply and careful handling from manufacturing through transportation, reflecting our commitment to global partnerships.

FAQ's of LT Panel:

Q: How can I customise the LT Panel to fit my facility's specific needs?

A: You can customise the LT Panel by selecting busbar materials (copper or aluminium), entry types (top or bottom), mounting options (floor or wall), number of ways, overall dimensions, and connectivity, ensuring the panel meets your exact specifications.

Q: What benefits do the modular and compartmentalized designs offer?

A: The modular and compartmentalized construction allows safe segregation of circuits, simplifies maintenance, reduces downtime during repairs or expansions, and ensures optimal safety for operators and equipment.

Q: Where is the LT Panel best suited for installation?

A: These panels are ideal for industrial plants, commercial facilities, and utility power distribution setups, especially where durability, reliable segregation, and protection against dust and vermin are critical.

Q: What process is followed to ensure quality and compliance?

A: All LT Panels undergo stringent testing as per IEC 61439 and IS:8623 standards, with quality assurance at every manufacturing step, from raw material inspection to final assembly and pre-dispatch testing.

Q: How does the panel maintain performance under diverse conditions?

A: Designed to operate from -5C to +45C, up to 95% RH, and at altitudes up to 2000 meters, the panel features robust construction and high-quality insulation, ensuring consistent performance in a wide range of environments.

Q: What primary advantages does your LT Panel provide over competitors?

A: Our panels offer customizable designs, proven durability (15+ years), modular flexibility, reliable protection, and compliance with leading safety standards-backed by prompt support and global service.
